Product Introduction

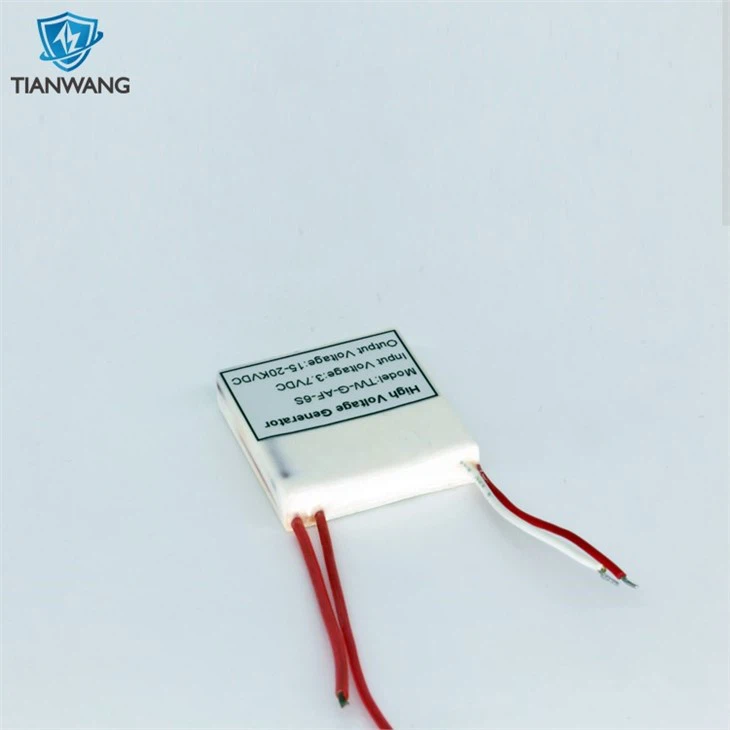

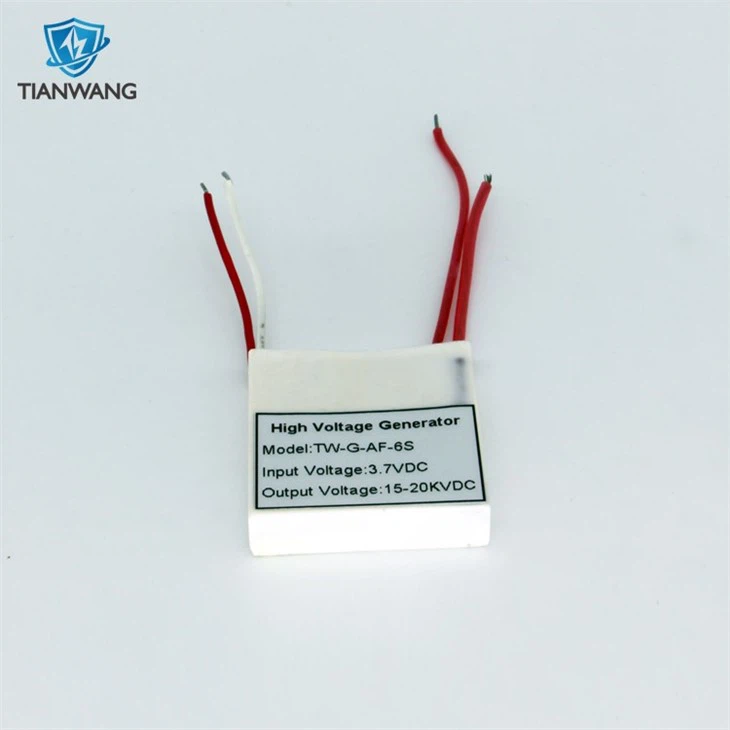

The DC high voltage module is small in size, high in efficiency and fierce in discharge intensity. The peripheral circuit is simple (just connect the switch and the battery).
The input end uses 3.7V polymer lithium battery, with over-charge and over-discharge protection function, which can get tens of thousands of volts of DC high voltage at the output end. Can be used in small electric baton products, but also do popular science experiments.
Product Parameter (specification)
Product name | DC high voltage module |
Model | TW-G-AF-6S |
Input voltage | 3.7 VDC |
Output voltage | 12 KVDC |
Discharge distance | 8MM |
Size | L33xW7xH39MM |
Working Current | 2600MA |
Input Line Diameter | 1.2±0.03MM |
Output Line Diameter | 1.6±0.03 MM |
Copper Wire | 0.15 mm x 7 Φ root |
Input Line Length | 40MM |
Output Line Length | 66MM |
Weight | 25±1g |
Suggestions for Power Supply Selection
The input voltage of 3~4.2V is recommended to use a single 3.7V or 4.2V lithium battery such as 18650 battery, idle mobile phone battery (excluding the protection plate capacity above 2000MA) or nickel-chrome, nickel-metal hydride battery, etc., no. 5 or 7 batteries can be used. It is recommended to use two 3.7V or 4.2V lithium batteries such as 18650 batteries in series or 6V lead-acid batteries for the input voltage of 6-7.4 V. Small capacity lithium two series for 7.2V, in the state of arc measurement voltage has fallen to about 4V, the smaller the capacity of the voltage is lower. Therefore, lithium batteries above 3000MA are recommended.
Product Details
We have exported voltage generator module throughout the world 30 years .High efficiency,good price,excellent quality ,damage rate is only 0.1%, general damage rate on the market is 4% .
these are let us keep very competitive in the current market .
FAQ
Q:How about the product performance?
A:Electric high voltage generator, high temperature resistance, no leakage, more safe. High voltage package has stable performance and controllable quality.
Q:What are the features of your electronic circuit transformer?
A:High pressure resistance, high temperature resistance, no leakage, more safe. Dc boost step up power module has stable performance and controllable quality Tianwang company is dedicated to product details, years of industry experience, artisans elaborate.
Q: How about delivery speed?
A:Available from stock, delivery 1 day after receipt of payment.
Q: Do you have after-sale service?
A:The products sold by our company have gone through strict quality inspection process before delivery. Please check carefully before receiving the goods. If you have any questions, please contact us in time.
Q:How to use dc high voltage generator to maximize its life?
A:Because the dc high voltage generator is a special type of product, the service life and operation have a great relationship.
Avoid power supply when high voltage is no load. Adjust the high voltage end to a proper distance before power supply
