Jiangsu Tianwang Solar Technology Co., Ltd. is one of the leading dc high voltage generator step up transformer manufacturers and suppliers in China. Please feel free to buy or wholesale high quality products for sale here from our factory. Customized orders are welcome.
Brief：
DC High Voltage Generator Step Up Transformer can be widely used in the following fields：
1. Human body surface sterilization, reduce acute inflammation and promote wound healing. Such as acne treatment,burns, beriberi,skin itch etc.
2. keep fruits and vegetables fresh. Different doses of plasma treatment can affect metabolism by regulating the expression levels of genes related to the metabolic pathways of fruits and vegetables, and ultimately retain the nutrients in the fruits and vegetables.
3.plasma air purifier, subway carriage,central air-conditioning air disinfection and sterilization.
4. Plasma cleaning
5. Fireplace or heating stove ignition
Features ：
One-time sealing molding
Parameter：
Input Voltage:3.7V battery power supply
Output Voltage：+18KV-20KV
Input Current: ≤0.4A
Current: ≤2A
output power：About 5w
High voltage ignition distance: 0.5-1cm
Continuous working time: at least 5 hours
Dimensions： ≤22mmX26mmX100mm
Service life: more than 10000 hours
Use Method:

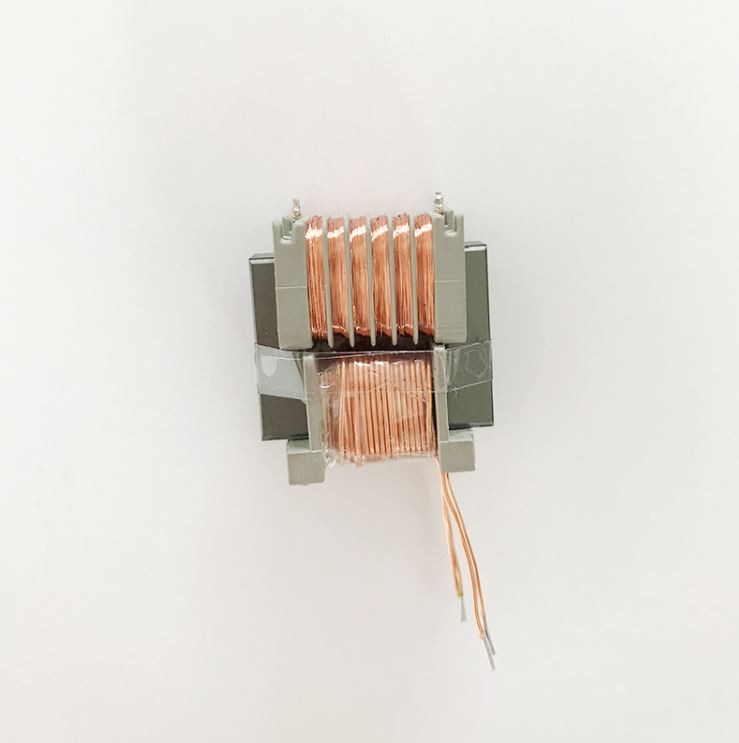

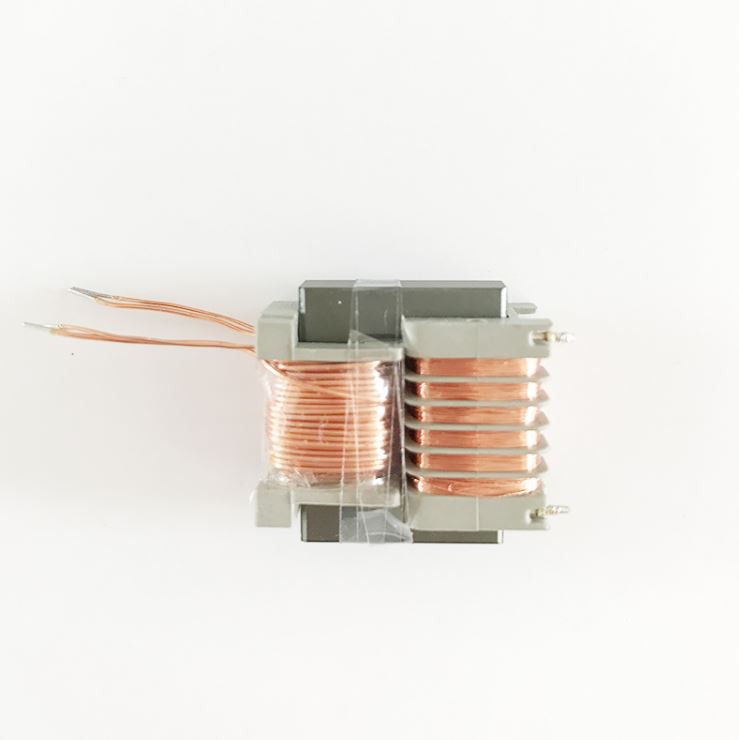

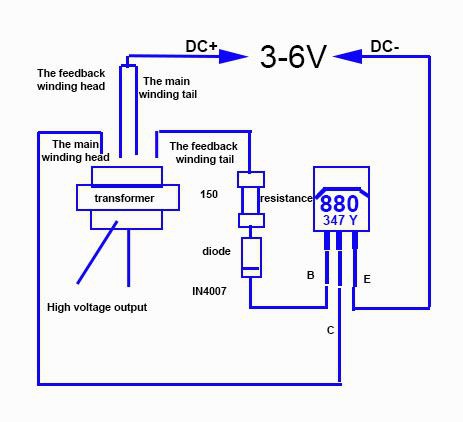

The high-voltage winding of the Plasma Ignition transformer is wound on the inner layer with a segmented skeleton and epoxy resin encapsulation. The low voltage winding is on the outer layer. Please do not make a mistake about the winding methods of the high-voltage winding and low-voltage winding of this transformer.
Advantage:
1. The general plasma ignition transformer uses the negative high voltage generated by the ionized air to generate a large number of negative ions. The generated negative ions and a small amount of positive ions naturally present in the air in nature neutralize the positive and negative charges to generate a certain amount of energy at an instant. This effectively leads to changes in the structure of the surrounding bacteria or conversion of energy, resulting in the death of the bacteria and achieving the effect of sterilization. However, the number of positive ions naturally present in the air in nature is quite small, so its sterilization effect is very small. Therefore, the sterilization effect of the positive and negative ion generator plasma generator far exceeds that of the negative ion generator.
2. The DC High Voltage Generator Step Up Transformer produces a large number of negative ions and positive ions at the same time. Since the number of negative ions is far greater than the number of positive ions, the positive ions will be neutralized by the negative ions immediately after generation, so there is no possibility that there will be a large number of positive ions in the air. Positive ions and negative ions themselves are part of the air composition, so the right amount of positive ions has no side effects on the human body. Therefore, the plasma generator can purify and sterilize the air while allowing it to be carried out in a human space, which has no side effects on the human body.
