Product Introduction

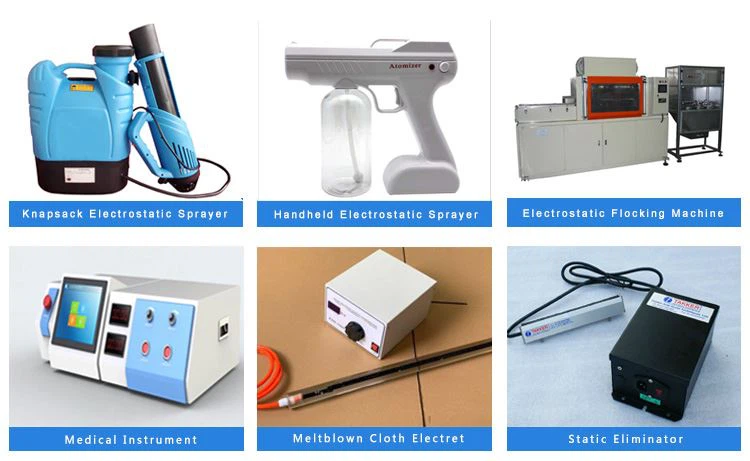

This is a special electrostatic high voltage generator developed for electrostatic sprayers, which can be used for handheld, backpack, handle and other electrostatic sprayers. It can also be used for large-scale electrostatic spray equipment such as drones. We can also customize the high voltage electrostatic generator for your unique needs.
Tianwang high voltage electrostatic generator has been developed for many years, and has cooperated and matured with many electrostatic sprayer manufacturers, which is well received by customers in terms of quality and electrostatic effects.
Product Parameter (specification)
Product name | Electrostatic Generator Negative Ion Generator |
Model | TW-G-JD-01 |
Input voltage | 12VDC |
Output voltage | 28KVDC |
Power | 1.8W |
Working current | 150±10MA |
Product Size | L120mm×W29mm×H25mm |
Input Wire Length | 290mm |
Output Wire Length | 500mm |
Weight | 157±1g |
Input Wire Diameter | φ0.8±0.25mm copper core:φ0.15mm×16pcs |
Output Wire Diameter(Positive) | φ1.0±0.25mm copper core:φ0.15mm×7pcs |
Output Wire Diameter(Negative) | φ1.0±0.25mm copper core:φ0.15mm×20pcs |
Product feature
Good electrostatic effect
Waterproof
Long life
Safe to use
Support customization
How to Use:

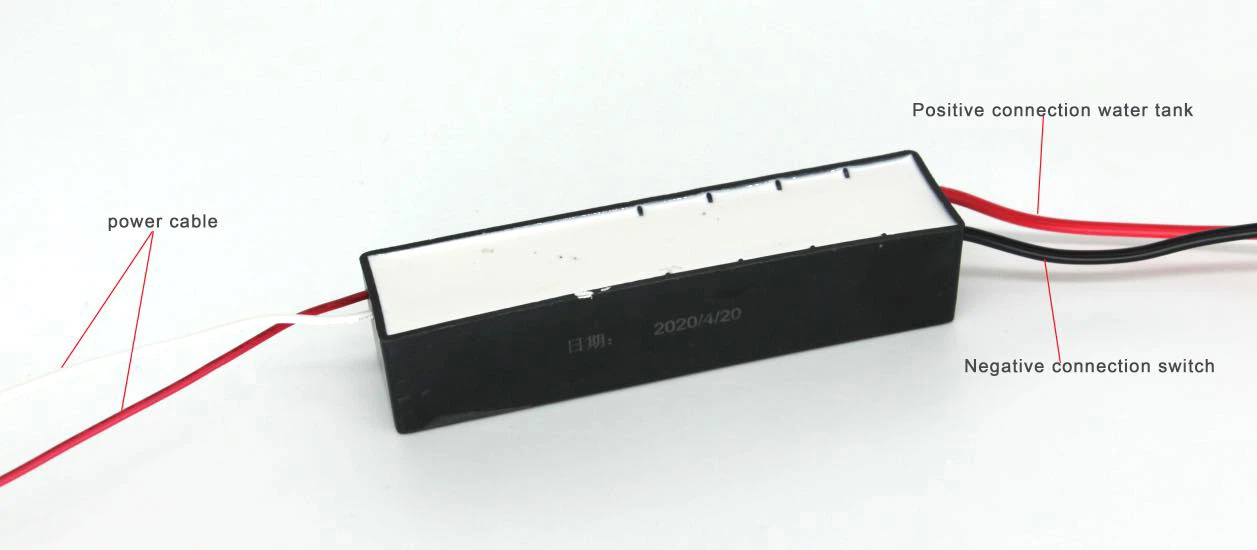

The electrostatic high-voltage generator is divided into an input terminal and an output terminal. The input terminals of our conventional high voltage electrostatic generator are red and white wires. The red lines connect battery positive electrode and white poles are negative. The wire diameter of the input terminal is smaller than the output terminal.
After distinguishing the input and output terminals, we will talk about its wiring method. The input terminal is connected to the power supply, the red is connected to the positive electrode, and the white is connected to the negative electrode. The red positive pole at the output is connected to the water tank, and the black positive pole is connected to the handle switch.

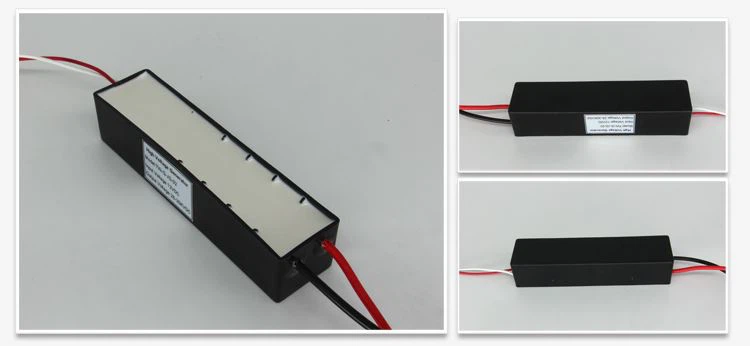

Product Details
Our advantage and service
Advantage:
1. We are the manufacturing plant of the whole industry chain - quality controllable
2. A strong team arrange production according to orders and delivery on time
3. Samples are available. We accept trail order.
4. Keep up with the latest market trends, Continuously bring you high quality and low price product
Our services:
● We provide free technical service about electrostatic high voltage module.
● Free on-site touring and introduction of our factory.
● We provide process design and validation for free.
● We can guarantee on-time delivery of samples and goods.
● Close follow-up of all orders by special person and keep customers informed timely.
FAQ
Q: Can you customize for clients?
A: Yes, we can customize as your need, we have R&D department, our designers can make design for you and our technicians make prototype.
Q: Can the electrostatic high voltage generator work continuously? How long ?
A: The high voltage electrostatic generator can work continuously, and the continuous working time is about 5-6 hours.
Q: Will there be a numb hand feeling when the electrostatic high voltage is packed into the electrostatic sprayer equipment?
A: Tianwang has developed an electrostatic high voltage power supply that will not numb hands. Of course, you also need correct wiring and improved equipment to better solve this problem.
Q. Is the adsorption effect of electrostatic generator obvious? Is it really useful?
A: After several years of product improvement, the adsorption effect, product characteristics, and the shortcomings of numbing hands have been basically improved. Using the sprayer of Tianwang electrostatic high voltage module, the surface and back of the object will be stained with sprayed liquid, front and back liquids. The ratio is about 30% to 40%.
