Product Introduction

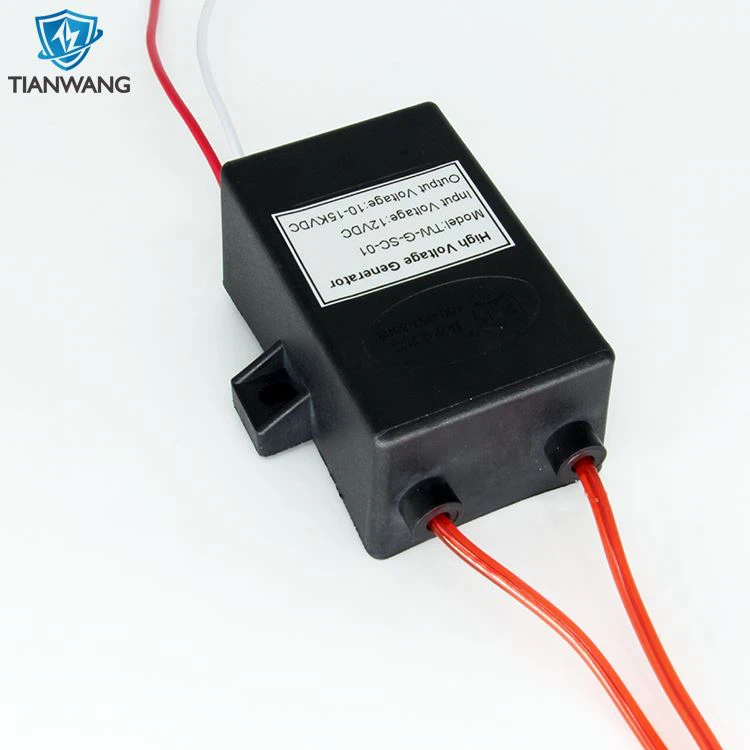

High voltage generator for solar insecticidal lamp developed by Tianwang can work continuously for 8 hours.
Output is high and stable, which can instantly kill mosquitoes and effectively prevent pests from invading. Solar insecticidal lights work in harsh outdoor environments for a long time, so choosing a high voltage generator for insect killer lamp with stable quality and long life can greatly increase the service life of solar insecticidal light. The high voltage generator is made of imported electronic components, and is packaged with a potting process to further improve its voltage stability, insulation and waterproof performance.
Product Parameter (specification)
Product name | High voltage dc generator for insecticidal lamp |
Model | TW-G-SC-01 |
Input voltage | 12 VDC |
Output voltage | 15 KVDC |
Discharge distance | 18MM |
Size | L60*W41*H29MM |
Working Current | 100MA |
Input Line Length | 100mm |
Output Line Length | 230mm |
Input wire diameter | Φ1.2±0.03mm Copper core wire: Φ0.15mm×7 pieces |
Output wire diameter | Φ2.2±0..03mm Copper core wire: Φ0.15mm×7 pieces |
Weight | 123±1g |
Remarks *The above parameters are manual/instrument measurement, there will be 10% error, please understand | |
Product feature and application
Features:
1. Waterproof, anti-aging, leakproof and leakproof epoxy resin encapsulation process packaging is used to improve the life and stability of the high voltage generator. At the same time, the product can be used normally in harsh environment. There will be no short circuit or leakage in low temperature and other environments, which improves the safety of DC high-voltage transformer to a certain extent.
2. Imported components are adopted. The DC high voltage generator of insecticidal lamp has stable working voltage and can work for about 10 hours for a long time, which meets the conditions of insecticidal lamp working all night.
3. High voltage output can kill mosquitoes immediately. Through the cooperation, assistance and research and development of new technologies with many customers, the stable, efficient and high-quality product quality is ensured.

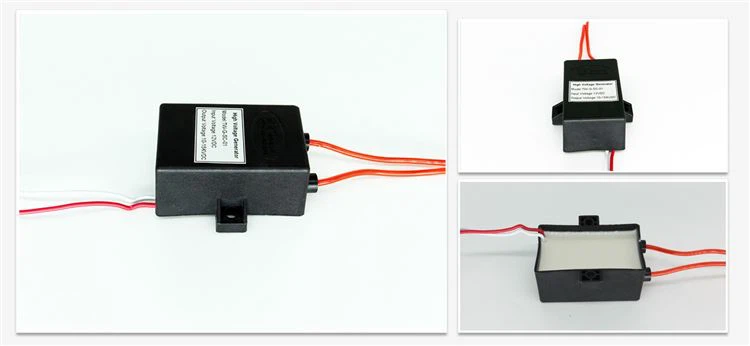

Product Details
Why choose us?
Factory direct sales, quality controllable
A strong technical team customizes products for you
Keep up with the market, high quality and low price
One-to-one dedicated service
FAQ
Q: How long does the high voltage generator of insecticidal lamp work?
A: The working time of the high voltage generator is 8-10 hours.
Q: How to distinguish input and output lines and how to wire them?
A: The input line is a thin red and white line (red positive and white negative), and the output line is a thick red and black line (red positive and black negative). Color of the line can also be customized according to customer requirements. Red wire of the input wire is connected to the positive pole, and the white wire is connected to the negative pole.
Q: Can it be used in household mosquito killers?
A: This is used in the outdoor solar pest control lamp. The household one cannot be used. If you need to customize the step up transformer of other products, you can also contact us. We have a professional technical team and service team to customize it for you product.
