Product Introduction

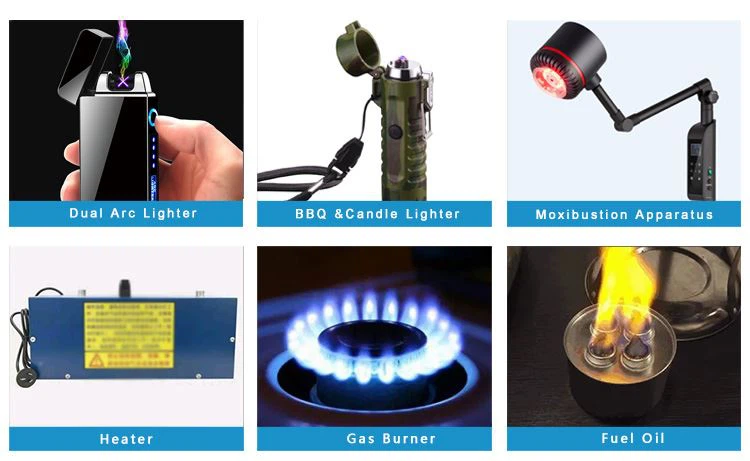

This high voltage arc transformer can be used as accessories for arc lighters and moxibustion instruments. It is also suitable for all kinds of heaters, school scientific research projects and science experiment etc.
High voltage transformer for arc lighter can be divided into single arc high voltage transformer and double arc high voltage transformer.
This arc generator needs to be connected to the battery and the drive board to work. Compared with traditional ignition methods, arc ignition has the characteristics of safety, environmental protection and wind resistance.
Product Parameter (specification)
Product name | 8KV Arc Ignition High Voltage Inverter Step Up Boost Coil Transformer Lighter Accessories |
Model | TW-G-DH-219 |
Input Voltage | 3.7VDC |
Output voltage | 8-8.2KVDC |
Material | Skeleton, Copper wire, ferrite core, epoxy, insulating sleeve |
Igniting distance | 6mm |
Current | 3.5-3.9A |
Size | 20.6*7.9*15 MM(L*W*H) |
Working Frequency | 18-20KHZ |
Input line length | 40mm |
Output line length | 40mm |
Weight | 10.2g |
Input wire diameter | Φ0.55±0.05mm Copper wire |
Output wire diameter | Φ1±0.05mm Transparent Teflon wire |
Remarks *The above parameters are manual/instrument measurement, there will be 10% error, please understand | |
Product feature and application
Feature: The product adopts anti-aging, good insulation PP material shell, and then is vacuum sealed with epoxy resin that meets ROHS standards.
Application:
The arc ignition high voltage inverter module is widely used in double/dual arc lighters.The item suitable for school scientific research projects, large quantity and favorable price, In addition, we provide detailed material.
In winding (thick copper wire) One feedback winding (group of thin copper wire) Secondary output for high voltage (transparent single core wire)
Product Details
Our advantage:
Our factory cover 20000 square meters and totally 150 employees to promise the high frequency high voltage transformer In stock best quality control;
Our motivation is --- Do each product well, serve each customer
Our believing is --- pay attention to every detail;
Our wish is ----perfect co-operation.
High Voltage Transformer Production Process
Product shell and bobbin is made by injection molding machine.
auto wilding and welding connect all components.
Insulate Vacuum sealing
Strict and effective QA(Quality control management system)
Packing
Product shell and bobbin is made by injection molding machine. Integrating multi winding taping machine and an auto soldering machine to a production line, which can be realize no labor operating.
FAQ
Q: Is it possible to customize the arc high-voltage package?
A: Due to the different production processes of the arc high voltage transformer, the investment cost of the skeleton and the automatic production line is too high, and the product cost is huge. At present, the skeleton owned by our company has met most of the product size requirements on the market, so we do not recommend that you customize the size of the arc high-voltage ignition transformer, but if you must have customized requirements, we will also have a specialist to contact you for customized solutions and estimated costs to help you choose.
Q: Can the cable length be customized?
A: The length of our high voltage transformer products can be customized.
Q: Can the high voltage package work when connected to the power supply?
A: Our high voltage arc generator needs to be connected to PCB board and the battery to work. If you have any questions about how it works, please feel free to contact us.
