Smarter Ignition Timing for Gasoline-Powered RC Vehicles

When a gasoline RC car moves from idle to full throttle, engine speed can change very quickly. The ignition timing that works well at low RPM is not necessarily the best choice at higher RPM. This is where an automatic advance ignition system can make a practical difference.

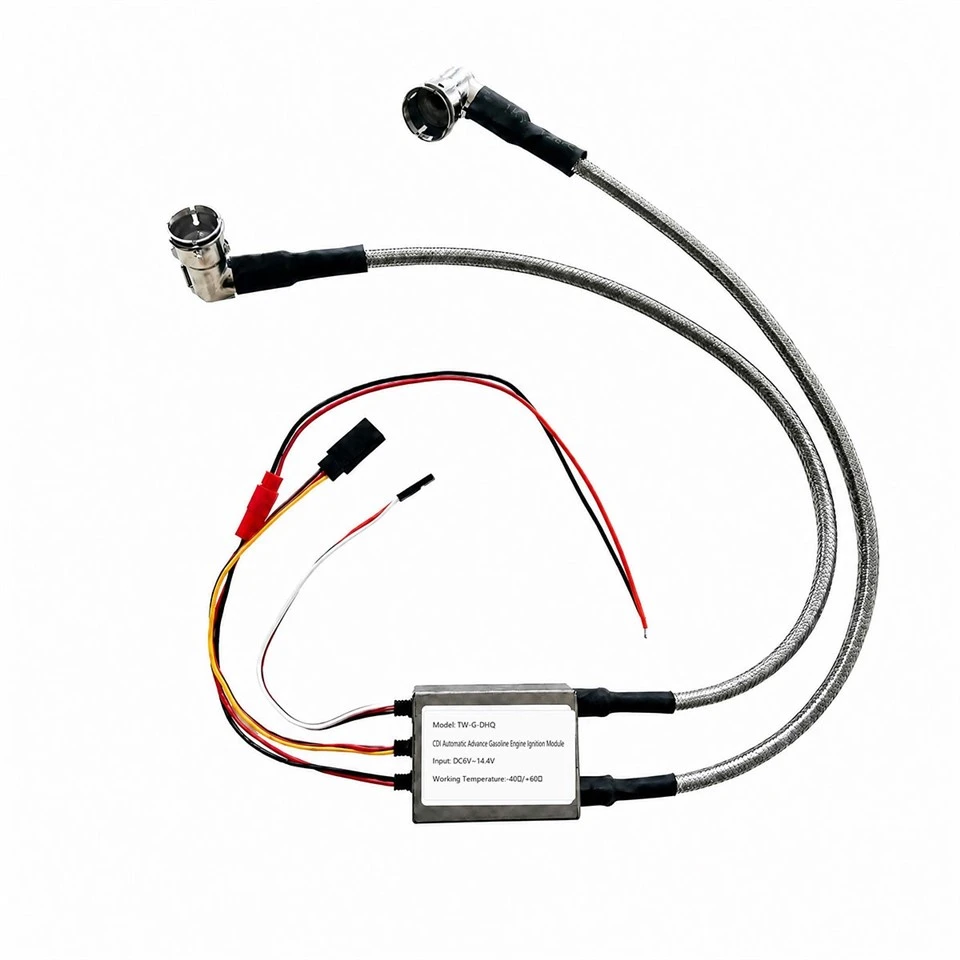

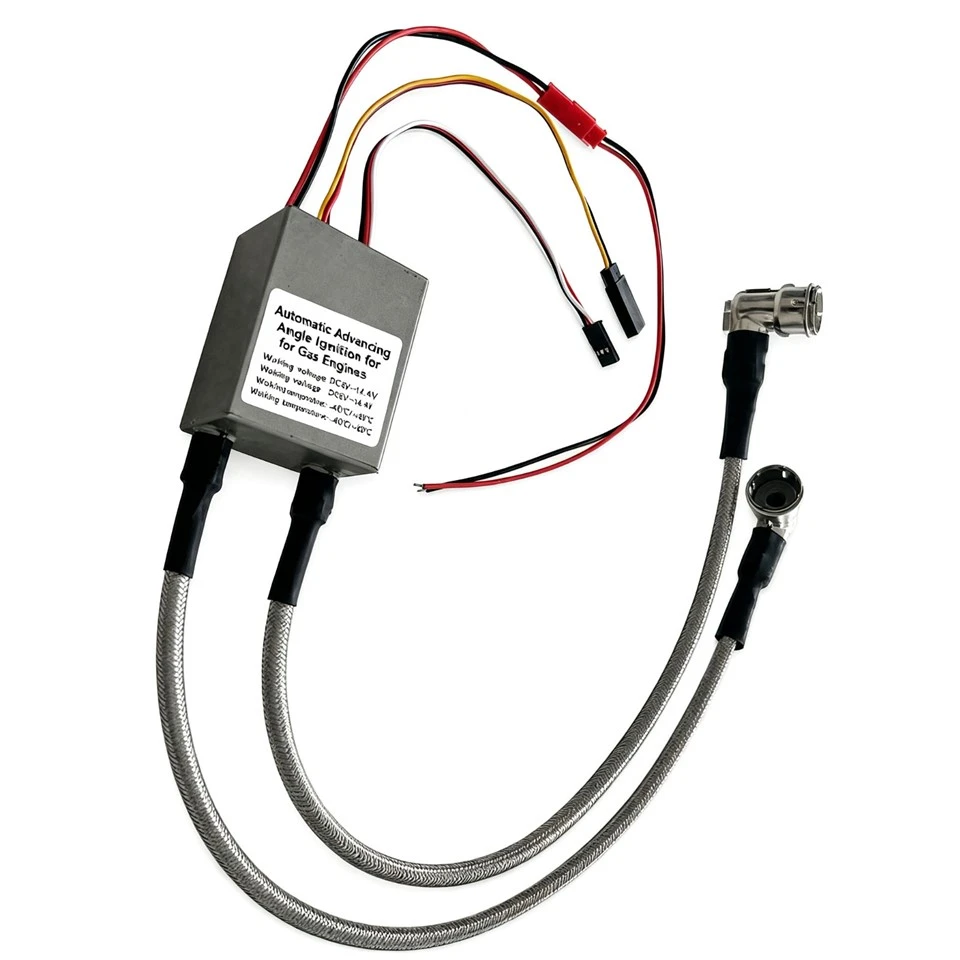

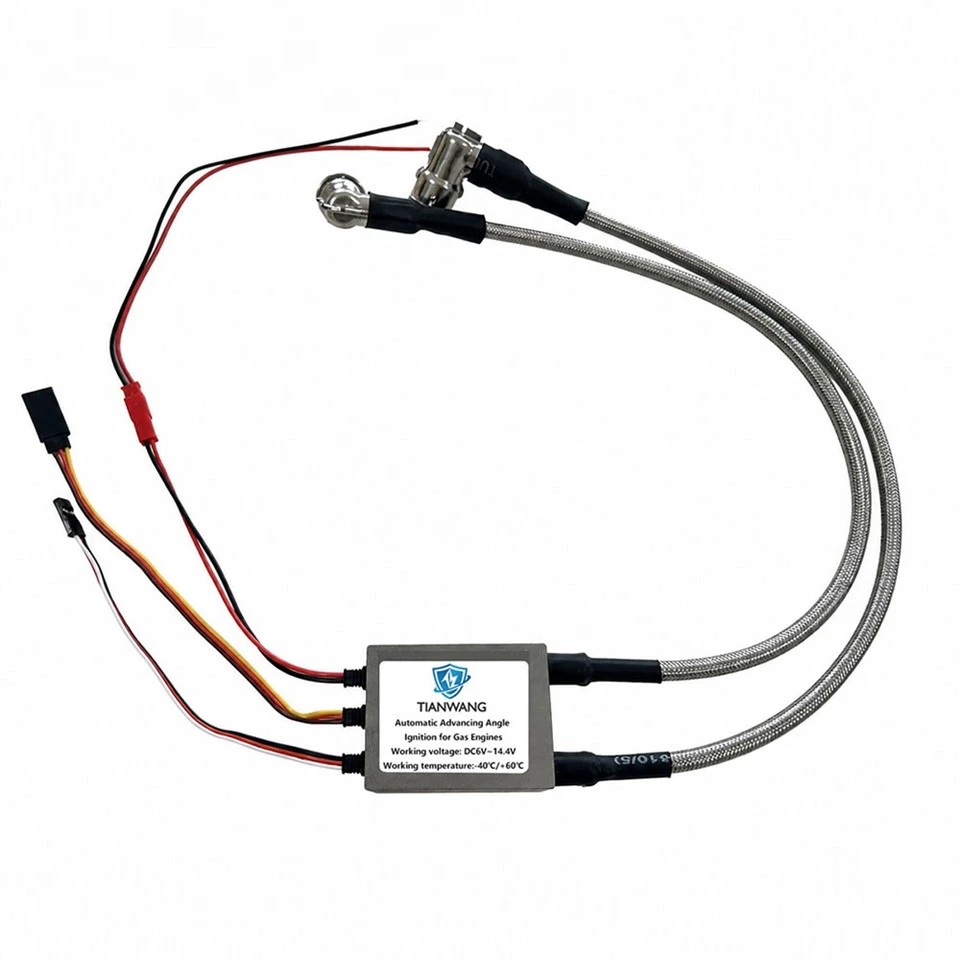

The TW-G-DHQ Automatic Advance CDI Ignition Module is developed for 2-stroke gasoline engines, with a particular focus on applications such as gasoline RC cars, RC buggies, large-scale RC vehicles and small model engines.

Instead of relying on one fixed ignition timing setting, the module uses electronic control to adjust the ignition timing as engine speed changes. In the specified application, the operating range can cover approximately 800 to 7,200 RPM, giving the engine a controlled ignition strategy from low-speed running through higher-speed operation.

For RC brands, model-engine manufacturers, distributors and OEM buyers, the TW-G-DHQ offers a compact way to add automatic ignition advance to a suitable 2-stroke gasoline engine.

A gasoline RC engine rarely stays at one speed. At startup, idle, acceleration and full throttle, the RPM can move through a wide range within a short time.

With a fixed ignition setting, the timing remains at one predetermined point. An automatic advance CDI takes a different approach: it uses the engine speed signal and applies the programmed ignition timing curve accordingly.

The TW-G-DHQ is designed around this principle.

At lower engine speeds, the ignition timing is controlled for the low-RPM operating range. As RPM rises, the system changes the timing progressively according to its programmed advance curve.

For the specified application, the controller can work across approximately:

800 RPM → 2,000 RPM → 4,000 RPM → 6,000 RPM → 7,200 RPM

The actual timing curve is determined by the module design and target engine, so compatibility should always be checked before installation.

Key Advantages

RPM-based automatic ignition advance

Consistent ignition control over a wider operating range

Designed for 2-stroke gasoline engines

Compact CDI construction

Stable spark control

Suitable for OEM and application-specific integration

The TW-G-DHQ is designed for applications where a small gasoline engine needs electronic ignition timing control without a bulky ignition system.

Typical applications include:

Gasoline RC Cars

For RC cars powered by suitable 2-stroke gasoline engines, the CDI module manages ignition timing as engine speed changes during acceleration and high-speed driving.

RC Buggies

Off-road RC buggies often experience rapid changes in engine load and RPM. A properly matched automatic advance ignition system can provide a more consistent ignition strategy throughout the operating range.

Large-Scale RC Vehicles

The compact module can be considered for selected large-scale gasoline RC platforms where installation space and ignition timing requirements need to be balanced.

Gasoline Model Engines

The same technology can also be used in suitable 2-stroke model-engine applications where automatic ignition advance is required.

Other Small Gasoline Applications

Beyond RC vehicles, the module can be evaluated for other compact 2-stroke gasoline engines with compatible electrical and ignition requirements.

Important: Compatibility is not determined by engine type alone. RPM range, trigger signal, ignition coil, spark plug, supply voltage, wiring and connector configuration should be checked before selecting the CDI module.

The operating principle is straightforward.

The engine generates an RPM-related trigger signal. The TW-G-DHQ receives this signal and determines the engine's current speed. Its electronic control circuit then applies the corresponding ignition timing and triggers the ignition process.

The system can be understood as:

RPM / Trigger Signal
↓
TW-G-DHQ CDI Controller
↓
Ignition Timing Adjustment
↓
Ignition Coil
↓
Spark Plug
↓
Combustion

This is what separates an automatic advance ignition module from a basic fixed-timing system.

Instead of asking the user to manually change the timing as engine speed changes, the CDI handles the timing adjustment electronically according to the programmed curve.

Ignition timing is closely related to how a gasoline engine responds at different speeds.

An RC engine may move through several conditions within seconds:

Idle → Throttle Open → Acceleration → Mid RPM → High RPM → Full Throttle

Each stage represents a different operating condition.

A fixed timing point may be acceptable for a simple application, but an engine that operates across a wider RPM range can benefit from a timing strategy that changes with speed.

For an RC vehicle, this can be relevant to:

Throttle Response

As the driver opens the throttle, engine speed rises quickly. Automatic timing control allows the ignition system to follow the changing RPM instead of remaining at one fixed point.

High-RPM Operation

At higher engine speeds, ignition timing requirements can differ from low-speed operation. The programmed advance curve provides a controlled approach to this change.

Consistent Engine Operation

Using RPM-based timing helps keep the ignition process coordinated with engine speed over the specified operating range.

The actual engine performance depends on the complete system, including engine design, fuel mixture, ignition coil, spark plug and ignition curve.

Space is often limited inside an RC vehicle. The ignition module needs to fit into the vehicle layout without interfering with the engine, fuel system or other electronic components.

The TW-G-DHQ uses a compact CDI configuration, making it suitable for applications where a smaller ignition control unit is preferred.

The module brings together the main ignition-control functions in one unit, including:

RPM signal processing

Electronic ignition control

Automatic advance timing

Ignition trigger output

Compact wiring arrangement

For OEM projects, the physical dimensions, wiring and connectors should be evaluated together with the target engine before finalizing the system.

A typical gasoline RC vehicle ignition system may be arranged as follows:

1. 2-Stroke Gasoline Engine

The engine provides the mechanical power and RPM signal required by the ignition system.

2. TW-G-DHQ CDI Module

The controller receives the trigger signal and determines the appropriate ignition timing.

3. Ignition Coil

The CDI triggers the ignition coil to generate the high-voltage pulse required by the spark plug.

4. Spark Plug

The spark plug delivers the ignition spark into the combustion chamber.

This arrangement allows the TW-G-DHQ to work as the electronic timing-control section of the ignition system.

Many ignition modules are built around a fixed ignition point. The main feature of the TW-G-DHQ is the automatic advance function.

Instead of using the same timing position throughout the engine's operating range, the module is programmed to respond to RPM.

That makes the product particularly interesting for applications where:

Engine speed changes significantly

Fast throttle response is required

The engine operates across a broad RPM range

Space for the ignition electronics is limited

OEM customers need a programmable or application-specific timing solution

The key is not simply a high-voltage spark. The ignition timing has to be matched to the way the engine actually runs.

*The actual operating range, ignition curve and compatibility depend on the target engine and electrical configuration.

For an RC brand or engine manufacturer, choosing an ignition module is often not as simple as selecting a standard off-the-shelf CDI.

The module must work with the engine's electrical system, including the trigger signal, ignition coil, spark plug and power supply.

Tianwang can support customers during the application-matching stage and discuss requirements such as:

Custom Wiring

Wiring configurations can be reviewed according to the target engine and installation layout.

Connector Options

Suitable connector arrangements can be discussed for OEM integration.

Ignition Timing Development

The ignition advance curve can be evaluated according to the intended application and engine operating range.

Product Housing & Branding

For qualified OEM projects, product labeling, housing and packaging requirements can be discussed.

Bulk Production

After technical confirmation and sample approval, the module can be supplied for larger production programs.

The right CDI module should be selected according to the engine rather than simply the product name.

Before replacing or developing an ignition system, we recommend confirming:

Engine type

Displacement

Operating RPM range

Trigger signal

Ignition coil specification

Spark plug type

Supply voltage

Wiring and connector configuration

Providing these details allows the ignition module to be evaluated more accurately and reduces the risk of an electrical mismatch.

What is an automatic advance CDI?

An automatic advance CDI is an electronic ignition module that changes the ignition timing according to engine speed. Unlike a fixed-timing CDI, it uses an RPM-related signal and a programmed timing curve.

Can the TW-G-DHQ be used in a gasoline RC car?

Yes, the TW-G-DHQ is designed for compatible 2-stroke gasoline engines, including suitable RC car and model-engine applications. The specific engine and ignition configuration should be checked before installation.

What is the difference between fixed timing and automatic advance?

A fixed-timing system uses one predetermined ignition timing point. An automatic advance system changes the timing as engine speed changes.

What RPM range does the TW-G-DHQ support?

For the specified application, the module can operate across approximately 800–7,200 RPM. The actual timing curve and compatibility depend on the target engine.

Is this CDI suitable for every 2-stroke engine?

No. Two 2-stroke engines can have very different electrical and ignition requirements. Trigger signal, ignition coil, spark plug, RPM range and wiring should all be considered.

Can Tianwang provide OEM CDI modules?

Yes. Tianwang supports OEM/ODM projects for suitable applications, including technical evaluation, customized wiring and connector configurations, product branding and bulk production.

A reliable ignition system starts with the right match between the CDI module and the engine.

The TW-G-DHQ Automatic Advance CDI Ignition Module is designed for 2-stroke gasoline engines, with applications including gasoline RC cars, RC buggies, large-scale RC vehicles and model engines.

With RPM-based automatic ignition advance, compact construction and OEM/ODM support, it provides a practical option for companies developing or upgrading gasoline-powered RC products.

Contact Tianwang to discuss your 2-stroke engine specifications, ignition requirements and OEM project.
