Jiangsu Tianwang Solar Technology Co., Ltd. is one of the leading automatic advancing angle igniter for brush cutter, chainsaw & hedge trimmer manufacturers and suppliers in China. Please feel free to buy or wholesale high quality products for sale here from our factory. Customized orders are welcome.

If you operate a gas brush cutter, petrol brush cutter, 2-stroke brush cutter, string trimmer, 2-stroke chainsaw, gasoline chainsaw, petrol chainsaw, gas hedge trimmer, or 2-stroke hedge trimmer, the right ignition timing is critical to performance, starting, and fuel efficiency. Our automatic advancing angle igniter is engineered to continuously adjust the ignition advance angle based on engine RPM - delivering the exact spark timing your machine needs at every speed.

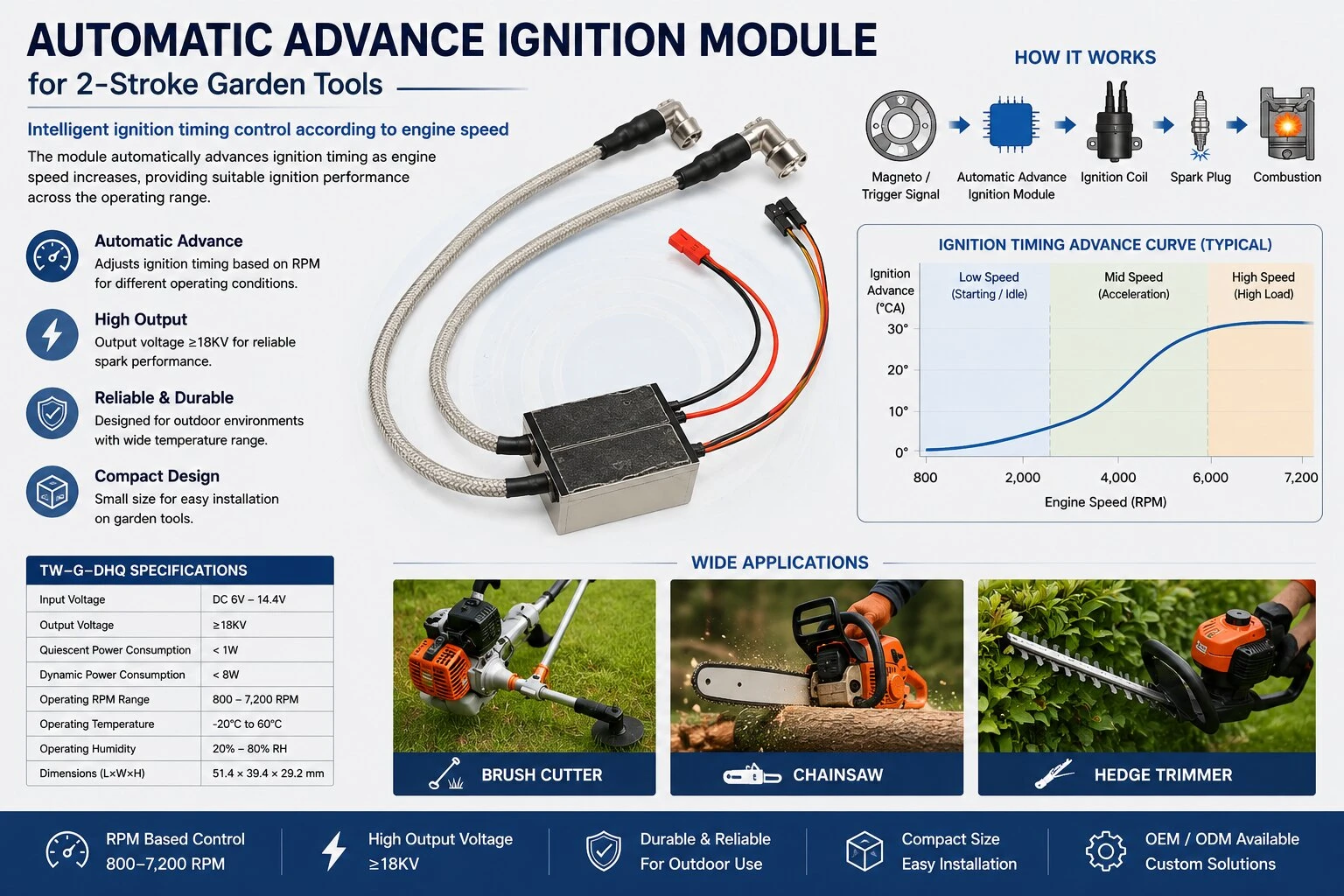

An automatic advancing angle igniter is an intelligent ignition control device designed for small gasoline engines. It automatically advances or retards the ignition timing according to the engine speed.

At low RPM / starting, it retards the ignition angle for easier pull-starts and reduced kickback.

At high RPM / full load, it advances the ignition angle to optimize combustion, improve throttle response, and increase cutting power.

This dynamic timing control is especially important for handheld outdoor power equipment such as brush cutters, chainsaws, and hedge trimmers, where engine load changes rapidly during operation.

1. Easier Starting for Gasoline-Powered Equipment

The automatic retarding function at low speed reduces pull force and prevents dangerous kickback. Whether you run a gasoline chainsaw or a petrol brush cutter, cold starts become noticeably easier.

2. Stronger Acceleration & Cutting Performance

By advancing the ignition timing at high RPM, the engine burns fuel more efficiently under load. This delivers faster throttle response and more consistent power for:

Gas brush cutter / Petrol brush cutter / 2-stroke brush cutter

String trimmer

2-stroke chainsaw / Gasoline chainsaw / Petrol chainsaw

Gas hedge trimmer / 2-stroke hedge trimmer

3. Lower Fuel Consumption & Reduced Emissions

Precise ignition timing ensures complete combustion, which helps reduce unburned fuel in the exhaust. Users often report lower fuel usage during long cutting sessions and fewer carbon deposits inside the cylinder.

4. Extended Engine Life

Incorrect ignition timing can cause overheating, knocking, and excessive carbon buildup. The automatic advancing angle igniter keeps the combustion process within the optimal range, reducing stress on the piston, cylinder, and spark plug.

5. Reliable in Harsh Outdoor Conditions

Sealed construction protects against moisture, dust, and vibration. The unit is designed for the demanding environment of professional landscaping, agriculture, and forestry work.

Our automatic advancing angle igniter is suitable for most small 2-stroke gasoline engines used in:

Compatible engine displacements typically include 25cc, 26cc, 33cc, 43cc, 52cc, 58cc, and similar small gasoline engines. Please refer to the mounting dimensions and connector type in the technical table below to confirm fitment.

Precision-tuned timing curve for handheld 2-stroke outdoor power tools

Compatible with popular brush cutter, chainsaw, and hedge trimmer brands

Plug-and-play design for easy replacement of standard fixed-angle igniters

Tested under high-temperature, high-vibration field conditions

Suitable for both professional landscapers and home garden users

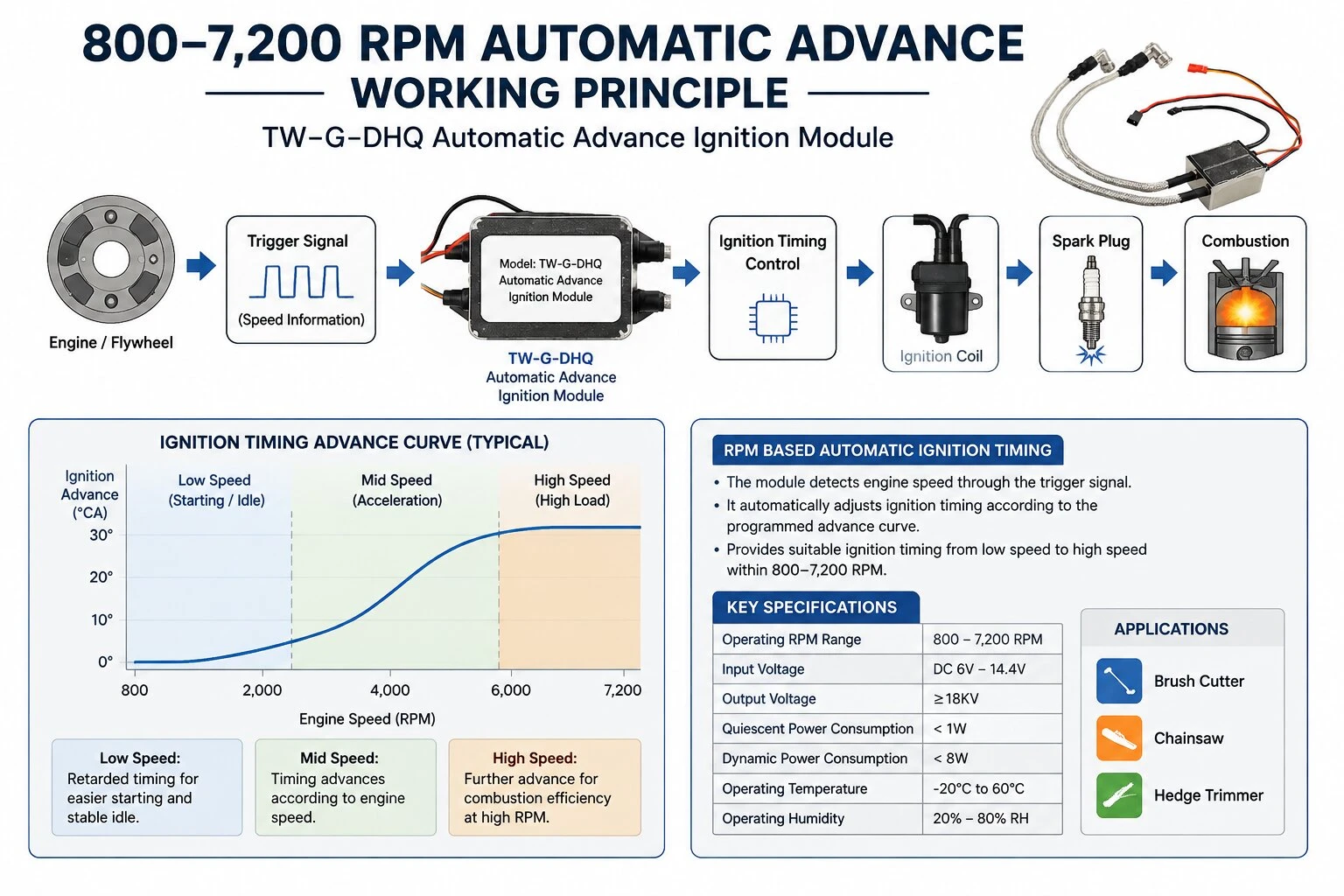

The purpose of automatic advance is to make ignition timing follow engine speed.

Take a typical garden tool as an example. The engine may move from:

Starting → Idle → Acceleration → Working RPM → Higher RPM

Those operating points are not identical, so a single fixed timing position may not be appropriate across the entire range.

With the TW-G-DHQ, the ignition timing is controlled according to the engine's RPM-related signal and the programmed timing characteristics.

This gives equipment manufacturers another option when a 2-stroke engine needs automatic ignition timing control rather than a simple fixed-timing setup.

Installation space can be limited around a brush cutter, chainsaw or hedge trimmer engine.

The TW-G-DHQ body is approximately 51.4 × 39.4 × 29.2 mm. The specification lists an input terminal of approximately 1.2 × 150 mm and a high-voltage wire of approximately 6.0 × 400 mm.

For equipment manufacturers, these dimensions can be reviewed together with the engine layout before finalizing the installation.

Outdoor equipment is often used in changing environmental conditions.

According to the product specification, the TW-G-DHQ is designed for an operating temperature of -20°C to 60°C and an operating humidity of 20%–80% RH. The specified storage temperature is -20°C to 80°C, with storage humidity of 15%–85% RH.

The specification also includes an electrical strength test at AC 1500V, 50Hz, 1mA for 3 seconds between the input terminal and the housing/epoxy surface, with no flashover or breakdown recorded in the test requirement.

When an original ignition module needs to be replaced, choosing a part based only on appearance can lead to compatibility problems.

For a brush cutter ignition module replacement, chainsaw CDI replacement, or hedge trimmer ignition replacement, we recommend checking the original system first.

The most useful information includes:

Engine model

Operating RPM

Input voltage

Trigger signal

Ignition coil

Spark plug

Wiring and connector

Mounting dimensions

Engine displacement by itself does not tell you whether two ignition modules are interchangeable.

For manufacturers of brush cutters, chainsaws and hedge trimmers, the ignition module may need to be matched to a specific engine platform.

Tianwang can discuss application requirements for OEM and ODM projects, including:

Wiring and Connector Configuration

Cable length and connector requirements can be reviewed according to the target equipment.

Ignition Timing Requirements

The timing characteristics can be evaluated according to the engine's RPM range and application.

Mechanical Integration

The module size and installation position can be reviewed during development.

Branding and Packaging

OEM labeling and packaging can be discussed for qualified projects.

Sample Evaluation

Engine specifications can be reviewed before samples are prepared for testing.

The TW-G-DHQ may be relevant to several types of customers:

Outdoor Power Equipment Manufacturers

For companies developing gas brush cutters, chainsaws and hedge trimmers.

Replacement Parts Distributors

For distributors looking for compatible 2-stroke ignition modules.

Engine Manufacturers

For small gasoline-engine platforms requiring automatic ignition timing control.

OEM / Private-Label Brands

For companies developing their own garden-tool product lines.

The important point is that the target engine must be electrically compatible with the module

1. Will this automatic advancing angle igniter fit my petrol brush cutter or gasoline chainsaw?
It is designed for most small 2-stroke gasoline engines found in petrol brush cutters, gasoline chainsaws, and similar equipment. Please check your engine displacement and connector type against the technical specifications before ordering.

2. How does an automatic advancing angle igniter improve performance on a 2-stroke brush cutter?
At high RPM the igniter advances the spark timing, allowing the fuel-air mixture to ignite earlier and burn more completely. This improves torque, throttle response, and cutting efficiency for tools like a 2-stroke brush cutter or string trimmer.

3. Can I install this on a gas hedge trimmer?
Yes. The igniter is compatible with many gas hedge trimmers and 2-stroke hedge trimmers that use a standard CDI ignition system. Installation is similar to replacing a standard igniter module.

4. Does it help with starting a cold petrol chainsaw?
Yes. During starting, the igniter retards the timing, which reduces cylinder pressure and kickback. This makes pull-starting a petrol chainsaw or 2-stroke chainsaw easier, especially in cold weather.

5. Is this product suitable for professional daily use?
Absolutely. The automatic advancing angle igniter is built for frequent use in landscaping, agriculture, and forestry applications, where reliability and consistent engine performance are critical.

Replace your old fixed-angle igniter with our automatic advancing angle igniter and experience easier starts, stronger acceleration, and better fuel economy across your entire fleet of gas brush cutters, petrol chainsaws, and gas hedge trimmers.
